Recombinant Human BMP4 Protein (A350283)

SDS-PAGE analysis of recombinant human BMP4 (aa 293–408). Lane 1: molecular weight marker (NEB P7719). Lane 2: BMP4 (2 µg). Lane 3: BMP4 (4 µg). A prominent band is observed at approximately 25 kDa, consistent with the glycosylated form of BMP4, despite a predicted molecular weight of ~13 kDa. Samples were resolved on a 4–20% TGX gel (Bio-Rad) at 175 V for 45 minutes under reducing conditions. Gel samples were prepared using Laemmli buffer (6×) and denatured prior to loading.

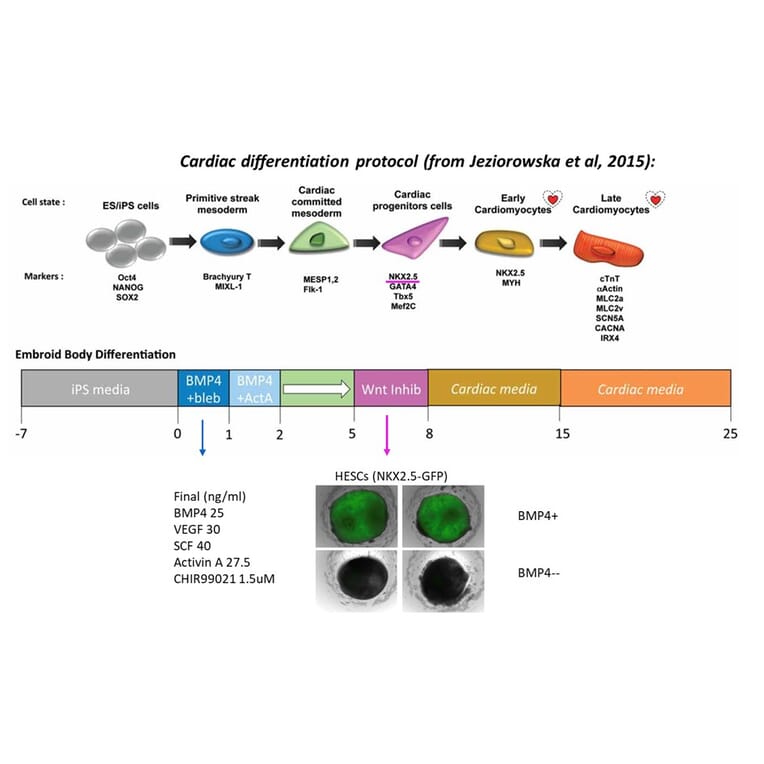

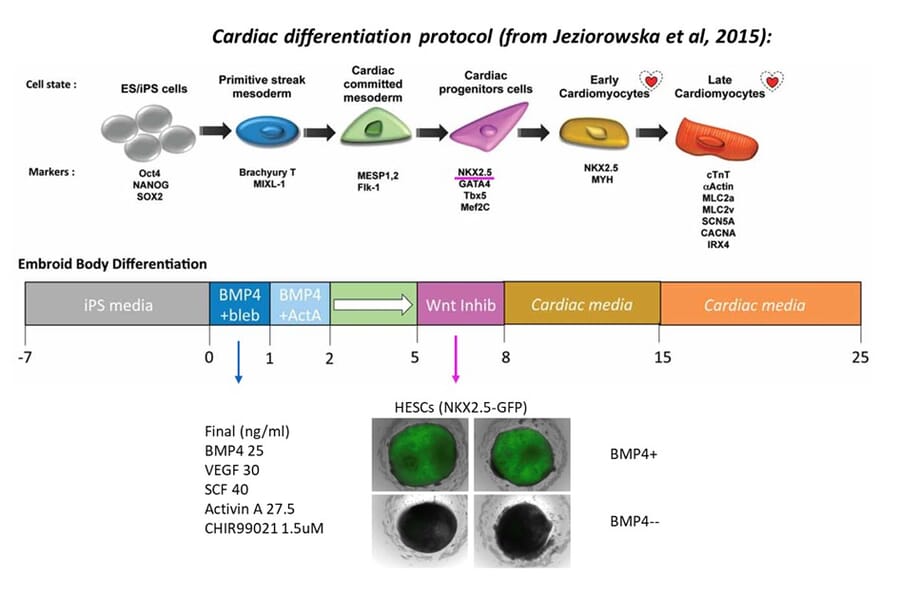

Schematic overview of BMP4-driven cardiomyocyte differentiation adapted from Jezirowska et al. (2015). The diagram illustrates the progression from pluripotent stem cells through mesodermal and cardiac progenitor stages to early and late cardiomyocytes, with key lineage markers indicated at each stage. The lower panel outlines the embryoid body differentiation protocol, highlighting BMP4 treatment alongside additional factors over a defined time course. Representative images of HESCs (NKX2.5-GFP) demonstrate successful cardiomyocyte differentiation in the presence of BMP4, as indicated by GFP expression, compared to minimal signal in BMP4-negative controls.

Biological activity of recombinant human BMP4 assessed by cardiomyocyte differentiation. Brightfield (top row) and fluorescence (bottom row) images of embryoid bodies are shown following BMP4 treatment. Positive control (left): commercial BMP4 (R&D Systems, 25 ng/mL). Sample 1 and Sample 2: BMP4 by Antibodies.com. Green fluorescence indicates expression of the cardiomyocyte marker NKX2.5-GFP, demonstrating successful differentiation. Comparable induction of cardiomyocyte formation is observed in samples treated with recombinant BMP4, confirming functional activity.

Differentiation of human embryonic stem cells into trophoblast lineage at day 5. Cells cultured in mTeSR1 alone (left) show minimal differentiation, while treatment with BMP4 induces trophoblast-like morphology. Comparison between a commercial BMP4 control and Antibodies.com recombinant BMP4 demonstrates comparable differentiation efficiency, confirming functional activity.
